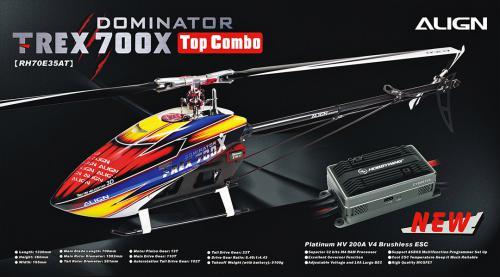

RC Helicopter T-Rex 700X Top Combo

Artikelbeschreibung

English

All-New Align T-REX 700X is specially designed for extreme 3D flight addicts.
The advanced engineered narrow body design efficiently decreases gear abrasion, machine deformation, increases power, and extends flying durability. The unique Split-Type Main Frame design, made of composite material side plates, is engineered using our proprietary embedding technology, which strengthens the entire structure and provides better accessibility for servicing the T-REX 700X. This extraordinary design includes a progressive lightweight landing skid making the T-REX 700X the leader in the 700 class. The Align T-Rex 700X is 400g (0.882lbs) lighter than our pervious model, this can effectively increase your flight time. The brand new 700EFL Flybarless Rotor Head System utilizes an extremely low CG design which reduces resistance during 3D maneuvers while increasing flight responsiveness and precision.
The T-REX 700X is equipped with the new 850MX motor which is highly efficient with superior power, excellent torque, low current draw, and is the most advanced motor approved by World RC Champions. The new designed motor cooling mount plate can reduce the motor operating temperature up to 20°C (68°F). The helicopter™s high quality design is accented with precision machined red and silver metal parts. The brand new RCE-BL200A brushless ESC supplies extreme power. The ESC includes a superior governor and BEC which allows you to set 5V-8V (Step: 0.1V). The NEW DS820M/DS825M high voltage brushless servos are more efficient and out perform other servos in this class. To protect these servos the new high-end CNC aluminum case function as a heat sink allowing the servos to operate at a lower temperature.
We developed the ultimate perfect 700 class helicopter which is stronger, yet lightweight, and built with precision manufactured high-quality parts. The T-REX 700X, King of the Sky, has arrived! What are you waiting for. The innovative design and high-end electronics will give you an adrenaline rush!

Specifications T-REX 700X
Length: 1320mm
Height: 360mm
Width: 220mm
Main Blade Length: 700mm
Main Rotor Diameter: 1582mm
Tail Rotor Diameter: 281mm
Motor Drive Gear: 13T
Main Drive Gear: 110T
Autorotation Tail Drive Gear: 104T
Tail Drive Gear: 22T
Drive Gear Ratio: 1:8.46:4.37
Weight (with Battery): 5100g

Specifications DS820M
Stall Torque: 17.0kg/cm@6.0V // 22.0kg/cm@7.4V // 23.0kg/cm@8.4V
Motion Speed: 0.075sec/60°@6.0V // 0.06sec/60°@7.4V // 0.055sec/60°@8.4V
Rating Voltage: DC 6.0V-8.4V
Temperature Range: -20°C ~ +60°C

Specifications DS825M
Stall Torque: 8.0kg/cm@6.0V // 10.0kg/cm@7.4V // 12.5kg/cm@8.4V
Motion Speed: 0.04sec/60°@6.0V // 0.03sec/60°@7.4V // 0.028sec/60°@8.4V
Rating Voltage: DC 6.0V-8.4V
Temperature Range: -20°C ~ +60°C

Specifications 850MX
KV Value: 490KV
Output Power (max.): 5100W (11000W 2sec)

Lieferumfang:
• 1x T-REX 700X DOMINATOR
• 2x 700 Carbon Fiber Blade
• 2x 106mm 3K Carbon Fiber Tail Blade
• 1x 850MX Brushless Motor(490KV)
• 3x DS820M High Voltage Brushless Servo
• 1x DS825M High Voltage Brushless Servo
• 1x Hobbywing Platinum 200A Brushless ESC
• 1x Microbeast PLUS Flybarless System

wird noch benötigt
• 1x Transmitter (7-channel or more, helicopter system)
• 1x Receiver (7-channel or more, according to Transmitter)
• 1x Flybarless System
• 2x 6S Li-Po 4500 ~ 5200mAh
• 1x 2S Li-Po 1900 ~ 2300mAh
• 1x Digital Pitch Gauge
• 1x Charger

---

Angaben zur Produktsicherheit

Warn- und Sicherheitshinweise

ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen.
