RC Helicopter T-Rex 700X Dominator Super Combo
Artikelbeschreibung
The optimal feature of T-REX 700X model is that the engineered narrow body design efficiently decreases gear abrasion and machine deformation to be more powerful and has longer flying durability, also apply the composite material side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.With the landing skid which is tilted 5 degree forward highly improves crashworthiness.
All the best electronics and powerful combination, the new DS820M/825M metal servos, 850MX 490KV motor, as well as effective Align 130A Brushless ESC.
Also paired with newly 700EFL rotor head set, advanced metal swashplate, advanced lightweight structure design, and mute/strengthened advanced CNC gear that dramatically enhance flying stability, precise and esthetics all at once.
Features:
- The advanced 700EFL Flybarless Rotor head system with 700DFC Main shaft utilizes extreme low CG design to effectively reduce resistance during 3D maneuvers while increasing flight responsiveness and precision. In addition, the high quality of the helicopter design is accented with red anodized and stainless color precision machined parts.
- Engineered Narrow body diseign efiiciently decreases gear abrasion and machine deformation. The Align T-Rex 700X newly designed narrow body is more powerful and has longer flying durability.
- Align Advanced Metal swashplate firmly connects to rotor grips preventing rotor head disengagement during intense flight. Two linkage ball mounting holes provided to improve control of system movement. A resolution hole or larger movement reaction hole can be selected based on your flying preference or style.

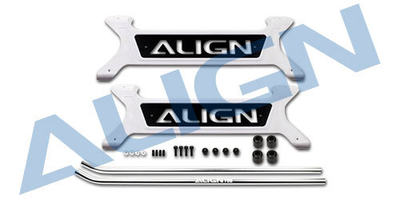

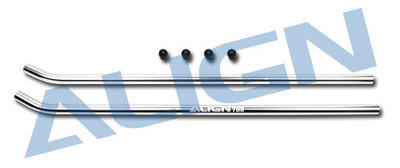

- Progressive Lightweight Landing Skid is tilted 5° forward which improves crashworthiness.
- Manufactured with durable lightweight fiber material and utilizing an engineered aerodynamic design, the Align Advanced Lightweight Canopy forms a protective shield for the entire machine.
- The new DS8 high voltage series servos designed specially for helicopters, utilizing a motor for fast speed, high torque, and super efficient reaction time allowing the Align 700X to perform faster with precision. The brand new high voltage brushless servos are equipped with a new CNC machined aluminium case. The new aluminium case exhibits top of the line servo aesthetics while providing a heat sink function for the best protection of the servo.
- The CNC reinforcement plate is designed to strengthen the 700X frame while efficently acting as a heat sink to efficently dissipate motor heat. This can decrease motor temperature up to 20°C during flight.
- 3K Main frame features; embedded battery mounting rails, integrated magazine structure and a latch design. The CNC aluminium battery mount provides great protection for the battery while providing a convenient way for mounting.
- The composite material of the split-type of main frame side plates engineered by exclusive embedding technology, which strengthens the entire structure and eases serviceability.
- The Unique advanced metal anti rotation bracket with integration of CNC aluminium alloy and POM Polyacetal which can lower friction between the linkage ball and the metal anti rotation bracket. In addidtion this new design increases the efficiencies and accuracy of the servos.
- New mute/strengthened advanced main gear with highly enhanced structural strength effectively increase torsion capability.
- Manufactured with stronger material, the torque tube front drive gear is more durable and precise. The stronger material reduces the probability of gear striping during flight or damaging the gear as a result of a crash.
- With the 700 Tail pitch assembly a simple enhanced multiple-bearing desing allows smooth an accurate movement. Take control of your T-Rex 700X just the way you like it!
What′s new?
- Advanced 700EFL Rotor Head
- Narrow Body Design / Split-type of main frame
- 400g lighter than our previous model
- Progressive Landing Skid with 5 degree tilted forward
- DS820M/DS825M High Voltage Brushless Servo
- RCE-BL130A Brushless ESC
- Mute/Strengthened Advanced CNC Gear
- Advanced Lightweight Canopy
Specifications:
T-REX 700XLength: 1320mm
Height: 360mm
Width: 220mm
Main Blade Length: 700mm
Main Rotor Diameter: 1582mm
Tail Rotor Diameter: 281mm
Motor Drive Gear: 13T
Main Drive Gear: 110T
Autorotation Tail Drive Gear: 104T
Tail Drive Gear: 22T
Drive Gear Ratio: 1:8.46:4.37
Weight (with Battery): 5100g
Specifications:
DS820MStall Torque: 17.0kg/cm@6.0V // 22.0kg/cm@7.4V // 23.0kg/cm@8.4V
Motion Speed: 0.075sec/60°@6.0V // 0.06sec/60°@7.4V // 0.055sec/60°@8.4V
Rating Voltage: DC 6.0V-8.4V
Temperature Range: -20°C ~ +60°C
DS825M
Stall Torque: 8.0kg/cm@6.0V // 10.0kg/cm@7.4V // 12.5kg/cm@8.4V
Motion Speed: 0.04sec/60°@6.0V // 0.03sec/60°@7.4V // 0.028sec/60°@8.4V
Rating Voltage: DC 6.0V-8.4V
Temperature Range: -20°C ~ +60°C
850MX
KV Value: 490KV
Output Power (max.): 5100W (11000W 2sec)
Content:
- 1x T-REX 700X DOMINATOR
- 2x 700 Carbon Fiber Blade
- 2x 106mm 3K Carbon Fiber Tail Blade
- 1x 850MX Brushless Motor(490KV)
- 3x DS820M High Voltage Brushless Servo
- 1x DS825M High Voltage Brushless Servo
- 1x Align RCE-BL130A Brushless ESC
- 1x MICROBEAST Plus Flybarless System
Required for assembly:
- 1x Transmitter (7-channel or more, helicopter system)
- 1x Receiver (7-channel or more, according to Transmitter)
- 2x 6S Li-Po 4500 ~ 5200mAh
- 1x 2S Li-Po 1900 ~ 2300mAh
- 1x Digital Pitch Gauge
- 1x Charger
