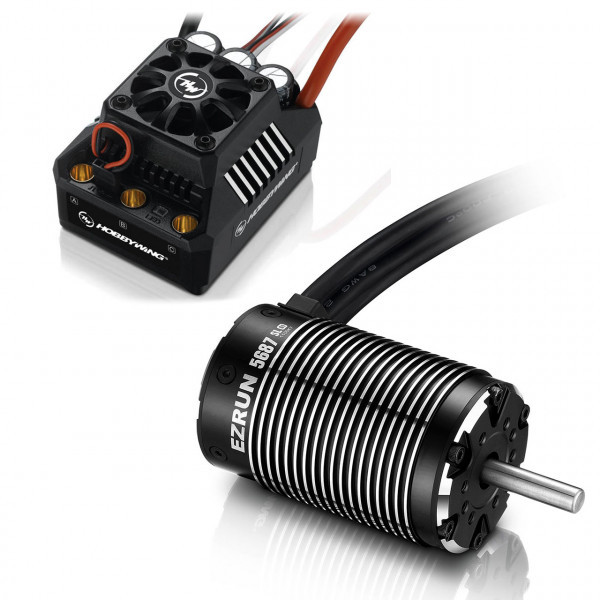

EzRun Combo MAX6 - 5687SL 1100kV 3-8S 1/6

Artikelbeschreibung

EzRun MAX6 ESC Features:

High Reliability & Durability
Built with the most rugged and high-quality components and coupled with cutting-edge firmware, the EZRUN MAX6 is able to deliver unmatched power and performance for even the most hardcore of racing applications, but is also responsive enough to protect itself from damage due to overloading due to physical abuse, overuse or even human error.

Great Flexibility & Versatility
With incredible acceleration capabilities and a rock-solid, stable output, the MAX6 can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain. The user will have the choice of adjusting the ESC parameters as per his preference and ability.

Applicable to All Weather Conditions
The waterproof and dust-proof design allows the MAX6 to be used in all weather conditions without any issue of damage caused to the ESC from water or dust.

High Voltage Built-in BEC
The MAX6 has adopted the world’s first HV built-in BEC with an output current of up to 25Amp and a switchable output voltage of 6V-7.4V. The high voltage BEC is designed to handle today’s high voltage servos on demand used by large scale vehicles.

Regular Firmware Updates - Free of Charge
You can upgrade the MAX6 with the Hobbywing USB LINK software, a multifunction LCD program box and a laptop. Hobbywing updates its ESC firmware regularly giving you upgraded features more often when available.

Built-in Anti-Spark System
The MAX6 is built with internal anti-spark circuitry that protects not only battery connectors from damage but helps to prevent physical injury due to urnt fingers from the inevitable issue of sparking when hooking up the ESC to higher voltage battery packs (5S/6S/7S/8S).

• Type: 1/6-1/7, Brushless, Sensorless, Waterproof
• Cont./Peak Current: 160A/1050A
• Input: 3-8S LiPo/9-24 Cells NiMH
• BEC Output - Switch Mode: 6V/7.4V, 6A
• Input Wires: 10AWG-200mm
• Output Wires: 10AWG-200mm
• Input Connectors: No
• Output Connectors: 6.5mm Female Gold Connectors (pre-soldered onto the PCB)
• Fan Size: 35x35x10mm
• Size: 70x56x46.5mm
• Weight: 240g
• Firmware Upgrade: Supported

• SET Button on ESC: Supported
• LED Program Box: Supported
• LCD Program Box: Supported
• WiFi Module: Supported

• Motors: Sensorless Brushless Motors
• Vehicles: 1/6、1/7 Touring Car/Buggy/Truck
• KV Rating/T Count: 6S LiPo: KV≤1500 / 8S LiPo: KV≤1200(5892 Size Motors)

EzRun 5687SL 1100KV Motor Features:

Strong Power
With a fast acceleration response and a rock-solid, stable output, the EZRUN 4985/5687/56113 motor can handle instant full-torque start-ups for wheelies, high-speed racing on straightaways and powering through the bumpiest terrain.

Thermal Protection
When pairing the EZRUN 4985/5687/56133 motor with the Hobbywing upgraded MAX6/MAX5 ESC, the built-in temperature sensor & port will effectively prevent the motor from being damaged due to overheat and prolong its service life.
(*Note: the older Hobbywing MAX5/MAX6 ESC’s doesn’t have the port for connecting to the temperature sensor port on the motor.)

High Efficiency
Hobbywing’s temperature control technology has been designed to protect the motor from being damaged by heat thus less heat more efficient the motor will run and perform. The output performance of this motor has an efficiency rate of up to 90% (an industry-leading level).

• Type: 1/6-1/5, Brushless, Sensorless Motor
• Pole Count: 4
• KV rating: 1100
• LiPo Cells: 3-8S
• No Load: 4.1A
• Outside Dia: 56mm
• Length: 87mm
• Shaft Dia: 8mm
• Weight: 916g
• Front Bearing: ID8xOD22xT7mm
• Rear Bearing: ID8xOD22xT7mm
• Timing: 0°
• Vehicles: Large Scale 1/5 (light) & 1/6
