DS535 Digital Servo

Artikelbeschreibung

• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• Higher signal resolution for smooth movements.
• Response time of 0.035s/60°. High rigidity metal gears with high precision and durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo′s high efficiency.
• Supports high voltage 8.4V.
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic and rudder servo use.

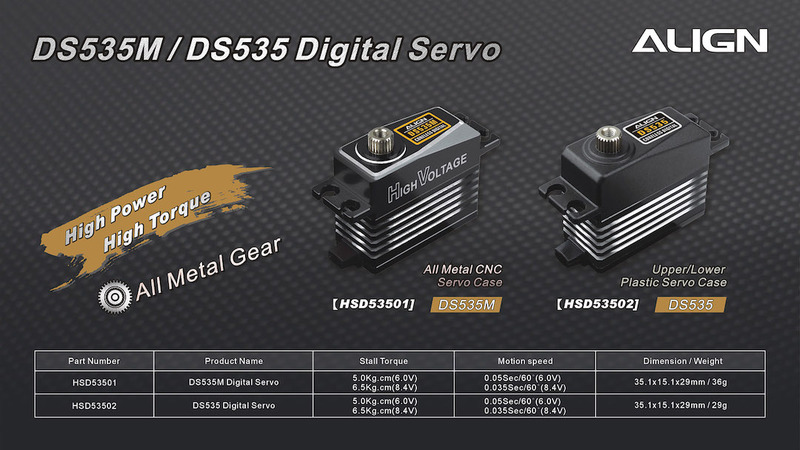

Technische Daten:

• Stall torque: 5.0kg.cm (6.0V) / 6.5kg.cm (8.4V)
• Motion speed: 0.05sec/60° (6.0V) / 0.035sec/60° (8.4V)
• Rating voltage: DC 6.0-8.4V
• Temperature range: -20°C ~ +60°C
• Dimension: 35.1 x 15.1 x 29mm
• Weight: 29g

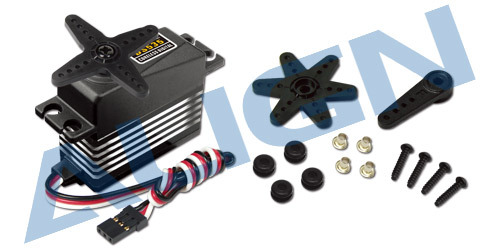

Lieferumfang:

• 1 x DS535 Digital Servo
• 1 x Servo Arm
• 1 x DS515/525 Servo Arm Set
• 4 x Socket Button Head Self Tapping Screw (T2.6 x 12mm)

Angaben zur Produktsicherheit

Warn- und Sicherheitshinweise

ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen.
