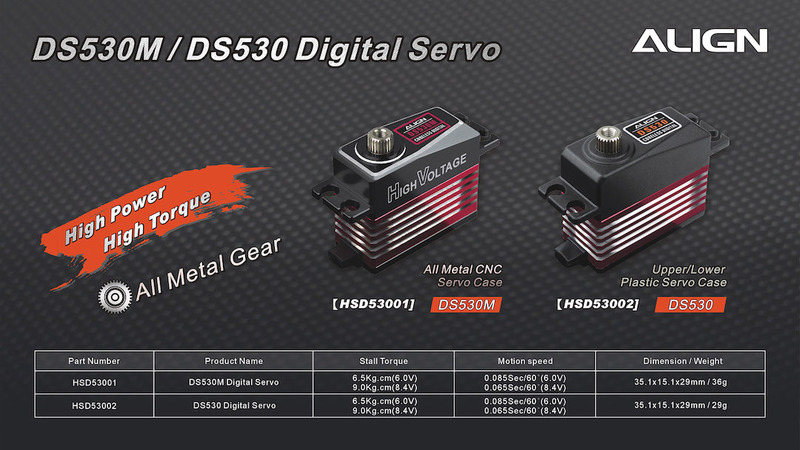

DS530M Digital Servo

Artikelbeschreibung

• High rigidity, shock resistant metal gears.
• Coreless Motor Design for fast speed, high efficiency, and low power consumption.
• Higher signal resolution for smooth movements.
• Fast speed with high torque of 9.0kg/cm. High strength composite alloy gears with durable structure characteristics.
• Aluminum alloy mid case construction for instantaneous heat dissipation, maintaining servo’ s high efficiency.
• Supports high voltage 8.4V.
• Powerful and precise servo suitable for T-Rex 500 CCPM cyclic use.

Technische Daten:

• Stall torque: 6.5kg.cm(6.0V) / 9.0kg.cm(8.4V)
• Motion speed: 0.085sec/60°(6.0V) / 0.065sec/60°(8.4V)
• Rating voltage: DC 6.0-8.4V
• Temperature range: -20°C ~ +60°C
• Dimension: 35.1 x 15.1 x 29mm
• Weight: 36g

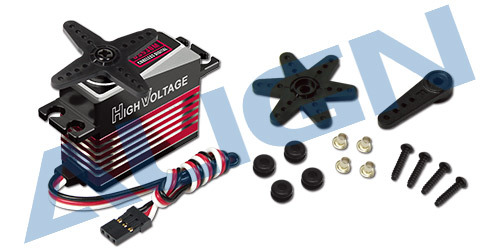

Lieferumfang:

• 1 x DS530M Digital Servo
• 1 x Servo Arm
• 1 x DS515/525 Servo Arm Set
• 4 x Socket Button Head Self Tapping Screw (T2.6 x 12mm)

Angaben zur Produktsicherheit

Warn- und Sicherheitshinweise

ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen.
