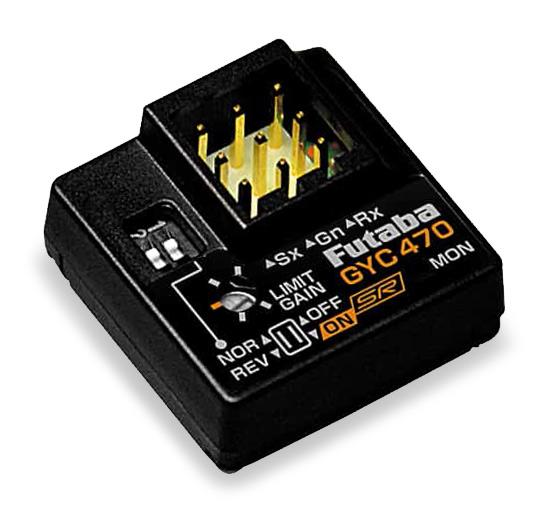

Car-Kreisel GYC470

Artikelbeschreibung

Compact and lightweight, the GYC470 is designed to control steering in your RC car. If the transmitter has 3 or more channels (capable of 3CH adjustment), gyro sensitivity can be adjusted from the transmitter. Features include simple set-up and S.BUS/S.BUS2 connectivity.

FEATURES:

• Dedicated RC car setting
• Remote gain function and mode switching function
• Integrated, compact, and light weight
• Easy setup
• Supports S.Bus/S.Bus2 Connection
• Only for Futaba digital servo
• T-FHSS SR (Super Response) system

Dedicated RC Drift car settings:
Boosts vehicle straightness and cornering ability, regardless of surface type.

Remote gain function and mode switching function:
You can adjust gain from the transmitter (3 or more CH) by using the remote gain function. Gain can also be adjusted with the trimmer on the GYC470. The mode switching function allows AVCS/NORMAL gyro mode switching.

Integrated, compact, and lightweight:
High density mounting technology makes the GYC470 compact (20.7 x 20.7 x 11 mm) and lightweight (3.7 g).

Easy setup:
The GYC470 can be used immediately with minimal setup.

S.BUS/S.BUS2 support:
Only one wire-receiver connection is needed to operate the GYC470 with S.BUS/S.BUS2.

Nur für Futaba Digital Servos

Technische Daten:

• Integrated sensor type rate gyro)
• Gyro sensor: MEMS vibrating structure gyro
• Operating voltage: DC 4.0 V to 8.4 V
• Current drain: 30mA (excluding a servo)
• Operating temperature range: -10 ºC to +45 ºC
• Dimensions: 20.7 x 20.7 x 11mm (except connector)
• Weight: 3.7g
• Functions: Sensitivity trimmer. LED monitor. Servo selection (SR mode ON/OFF). S.BUS/S.BUS2 connection

---

Angaben zur Produktsicherheit

Warn- und Sicherheitshinweise

ACHTUNG: Nicht für Kinder unter 14 Jahren geeignet. Benutzung unter unmittelbarer Aufsicht von Erwachsenen.
